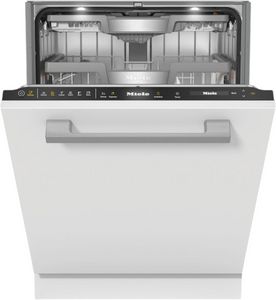

Miele 24" Panel Ready Top Control Built In Dishwasher


Model #:

G7766 SCVi AutoDos

Model #: G7766 SCVi AutoDos
1739904
Miele
$99,999.00

At a Glance

Product Dimensions 33.75"h x 23.63"w x 21.75"d

A true luxury dishwasher elevates the mundane to the extraordinary, effortlessly handling everything from delicate crystal to dirty pots. Wonderful use of space – the 3D MultiFlex tray with more room for your cutlery.Read More

Additional Savings Available

Call for Best Price

Get to know this product.

Product Overview

Product Overview

QuickIntenseWash

An unbeatable combination: the QuickIntenseWash program and the perfectly tailored All in 1 UltraTabs achieve the best possible cleaning and drying results on normally soiled dishware in 58 minutes, just like the PowerDisk. These specially developed tabs only take 2–3 minutes to dissolve. Thus, the cleaning performance begins right at the start of the wash program.

Domestic Appliance Networking with Miele@Home

With our innovative Miele@home system, you can exploit the full potential of your Miele appliances and make your everyday life even smarter. All intelligent Miele domestic appliances can be networked conveniently and securely. Operation is simple – whether you use the Miele app, voice control, or integration into existing smart home solutions. The appliances are networked via a home Wi-Fi router and the Miele Cloud.

FlexCare Glass & Bottle

Bottles, glasses, and other hollow items are held securely in the lower basket thanks to FlexCare Glass & Bottle. It ensures perfect cleaning performance in combination with the new BottleClean extra option. The water-carrying spray arms enable thorough cleaning of long, hollow items. The BottleHolder is integrated in the FlexCare cup rack and can also be used as a storage surface if required – for maximum flexibility.

Auto Open Drying

The dishwasher door opens automatically at the end of the program cycle and leaves a small gap. With the assistance of the fan, the warm moist air is transported out of the wash cabinet, allowing even challenging wash items such as plastic bowls to dry completely. Special air ducting protects your countertop from moisture.

Eco Power Technology

In the ECO program, water consumption is reduced to 8.4 litres. This also means that less energy is required to heat the water, and you benefit from an energy-efficient dishwasher. The water savings are achieved through the intelligent design of the supply system and a new, highly efficient filter system. Additional insulation reduces thermal losses and thus the amount of energy required to heat the water.

Comfort Close

Experience how easily the Miele door opens and closes. In addition, the door remains in the position of your choice.

Hot Water Connection

All Miele dishwashers can be connected to hot water at temperatures of up to 140°F (60°C). This reduces electricity consumption by up to 35% and program cycle times by up to 10%. In the ECO program, the energy consumption of the dishwasher is reduced to as little as 0.29 kWh.

3D MultiFlex Tray

You can now place small pieces of dishware, such as espresso cups, into your dishwasher's new and improved cutlery tray. The 3D MultiFlex Tray consists of a lowered central component and two side panels. The left panel can be slid to the right to make more space for tall wine glasses in the upper basket. The right-hand side with a lowering mechanism is ideal for large cutlery and small pieces of dishware.

Half Load

You can now wash small quantities of dishware without a guilty conscience: In almost all conventional programs, your dishwasher automatically measures how much dishware is in the wash chamber and adapts the water consumption carefully. With the automatic program recognition, you no longer have to wait until the dishwasher is fully loaded.

XL-Assist

Whether it’s bowls, ovenproof dishes, or pots – even bulky items are held securely in the dishwasher basket thanks to XL-Assist. Large items can be positioned quickly in the lower basket and small bowls are easily placed below them. Both sets of items are thoroughly cleaned. The Miele XL-Assist is flexible and can easily be folded down if not used. This means that you can perfectly load your Miele dishwasher with all kinds of items.

Extra Clean

Improves cleaning with a higher main wash temperature and thorough pre-rinse.

Waterproof System (WPS)

WPS also features a double solenoid valve directly at the faucet. If the first valve is faulty, the second closes the inlet. The sheathed inlet hose also ensures the highest level of safety: In the event of damage to the inner hose, water flows down the outer sleeve into the drip tray.

SensorDry

SensorDry intelligently adapts the program for excellent drying results and to prevent damage to kitchen furniture. A sensor checks the load and measures the temperature inside the chamber and the room temperature. The program is then adapted accordingly, e.g., by modifying the rinse temperature. The aim: To stop condensation forming on cabinets and to reduce energy consumption and running time without compromising on consistent drying.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)109
ColorCustom
Depth W Door Open 90 Degrees (cm)120.65
MPN12497320
Appliance Fit Width (cm.)60.96
Door Panel TypePanel
Color/Finish NameCustom
Depth w/Door Open 90 Degrees (in.)47.5
ENERGY STAR CertifiedNo
Delay Wash (Up to hours)24
Depth (in.)21.75
Height (in.)33.75
Noise level (dB)39
Width (in.)23.63
Manufacturer Warranty1 Year Parts & Labor
Appliance Fit Width (in.)24
Custom Panel ReadyYes
Sanitize OptionYes
Smart CompatibleYes
ADA CompliantNo
Cut Out Width23.63
Cut Out Height36.25
Dishwasher TypeBuilt-In
Control Panel TypeTop
Cut Out Depth21.75
Width (cm)60.02
Height (cm.)85.73
Depth (cm.)55.25
Product Weight (kg)49.44
Cut Out Depth Centimeter55.25
Cut Out Width Centimeter60.02
Voltage120
Frequency60
Amp15
Cut Out Height Centimeter92.08
Sound Rating RangeQuietest
Dishwasher Features3rd Rack, Wi-Fi Capable, Cutlery Holder, Wi-Fi Capable, Stemware Holder, Smart Compatible, App Capable, Cycle Status Lights, Custom Panel Ready, Leak Sensor
Third RackYes

Design

Control type Softkeys
Language OptionsYes

Convenience

Time left displayYes
In-operation indicator light Display

Efficiency and Sustainability

Proven hygieneYes

Quality of Results

Fresh-water dishwasherYes
AutoOpen dryingYes
SensorDryYes
Active condensation dryingYes
PerfectGlassCareYes

Wash Programs

Intensive 75°CYes
EconomyYes
Clean MachineYes
Rinse & HoldYes
Rinse out saltYes
China & CrystalYes

Cleaning Options

IntenseZoneYes
Extra cleanYes
Extra dryYes
BottleCleanYes
QuickYes

Technical Data

Total rated load in kW1.4
Length of water inlet hose in cm 5 (1.5)
Length of water drain hose in cm 5 (1.5)
Length of power cable in m 4 (1.2)
Min. front panel weight in kg 4
Max. front panel weight in kg 12

Basket Design

Cutlery loading 3D MultiFlex tray
Basket design MaxiComfort
MultiClipYes
FlexCare cup rack1
FlexCare glass holder2
StrawCleanYes

Safety

Waterproof systemYes
Check filter indicatorYes

Accessories Supplied

1 x PowerDiskYes
WarningProposition 65 Warning for California Residents
