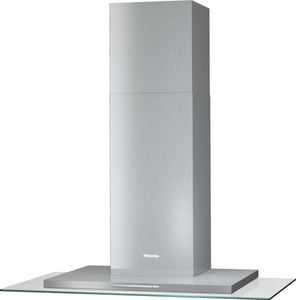

Miele 36" Stainless Steel Wall Mounted Range Hood
At a Glance
Product Dimensions 26"h x 35.25"w x 20.5"d
Miele Wall Mounted Hoods are the perfect blend of style and functionality for your kitchen. With sleek designs and a variety of sizes and finishes, these hoods not only enhance the aesthetic appeal of your space but also effectively remove smoke, odors, and grease from the air.Read More
Get to know this product.
Product Overview
Product Overview
Active CleanAir Filter
To remove odours with a Miele Recirculation Ventilation Hood, you can use active charcoal filters (sold separately). This disposable filter has to be replaced on a regular basis.
Stainless Steel Grease Filters (10-Layer)
Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and ensure that a large proportion of the grease is separated. When it is removed, the integrated fall protection system means that it can be handled safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that they do not discolour when washed in the dishwasher and continue to look good long term.
Silence
Efficient and very quiet. The motor, chimney and hood fan canopy are equipped with special insulation for effective sound-proofing. You can have a normal conversation even with high air throughput.
Miele CleanCover
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
Delayed Shut-Down Function
The automatic fan run-on ensures the full extraction of steam and odours that are still lingering, even after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
Filter Indicator
If the grease or active charcoal filter of your Miele ventilation hood is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can manually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Safety Switch-Off
The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Additional Features
Design - 35 1/4 (893) in (mm) wide stainless steel and glass cooker hood
Unique user convenience – Con@ctivity
Powerful - Booster setting
Useful Documents
Specifications
General Specs | |
| Width (in.) | 35.25 |
| Height (in.) | 26 |
| Duct Size (in.) | 6" Round |
| Depth (in.) | 20.5 |
| Color | Stainless Steel |
| MPN | 10878350 |
| Appliance Fit Width (cm.) | 90 |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 36 |
| Product Weight (lbs.) | 49 |
| Bulb Type | LED |
| Fan Speed Options | 3 |
| Vent Location | Top |
| Height Above Cooktop | 24.13 - 26 |
| Width (cm) | 89.54 |
| Height (cm.) | 66.04 |
| Depth (cm.) | 52.07 |
| Product Weight (kg) | 22.23 |
| Height Above Cooktop Centimeter | 61.29 - 66.04 |
| Voltage | 120 |
| Amp | 15 |
| Frequency | 60 |
| Range Hood Features | Filter Indicator, Automatic Shut Off, Ductless Capable, Removable Grease Filter, Light |
| Ventilation Type | Convertible (Both) |
Design | |
| RAL colour possible as customization on request | Yes |
| Customization possible on request | Yes |
| Height customization possible | Yes |
Operating Modes | |
| Recirculation conversion kit (order separately) | DUW 20 |
| Active charcoal filter (order separately) | DKF 12-P |
| Type of air guide | Convertible |
User Convenience | |
| Electronic controls | Yes |
| Programmable booster level switch-off | Yes |
| Run-on time 5 / 15 min | Yes |
| Programmable grease/active charcoal filter saturation indicator | Yes |
| Silence package | Yes |
| Networking with Miele@home | Yes |
Filter System | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
Lighting | |
| Number x W | 2 x 3 W |
| Light intensity in Lx | 550 lx |
| Colour temperature in K | 3500 Kelvin |
| Dimmer function | Yes |
Fan | |
| Dual-action fan | Yes |
| AC motor | Yes |
Safety | |
| Safety shut-off | Yes |
| Tempered glass | Yes |
Additional Dimensions | |
| Max. overall hood height for vented and external in inches (mm) | 38 5/8 (980) |
| Max. overall hood height for recirculation in inches (mm) | 43 3/4 (1110) |
| Min. overall hood height for vented and external in inches (mm) | 26 (660) |
| Min. overall hood height for recirculation in inches (mm) | 31 1/8 (790) |
| Canopy height in inches (mm) | 1 3/8 (34) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum height above gas cooktops (max. 12.6 kW total output, burner ≤ 4.5 kW) in mm | 26 (660) |
Technical Data | |
| Length of power cable in m | 2 (0.8) |
| Standard plug fitted | Yes |
| Number of phases | 1 |
Installation Notes | |
| Vent connection at top | Yes |
| Telescopic chimney | Yes |
Accessories Supplied | |
| RF Con@ctivity 2.0 transmitter for CM | XKS 3000 Z |
